Creating a sharded cluster

Example on GitHub: sharded_cluster_crud

In this tutorial, you get a sharded cluster up and running on your local machine and learn how to manage the cluster using the tt utility. This cluster uses the following external modules:

• vshard enables sharding in the cluster.
• crud allows you to manipulate data in the sharded cluster.

The cluster created in this tutorial includes 5 instances: one router and 4 storages, which constitute two replica sets.

Before starting this tutorial:

• Install the tt utility.

• Install tarantool.

The tt create command can be used to create an application from a predefined or custom template. For example, the built-in vshard_cluster template enables you to create a ready-to-run sharded cluster application.

In this tutorial, the application layout is prepared manually:

1. Create a tt environment in the current directory by executing the tt init command.

2. Inside the empty instances.enabled directory of the created tt environment, create the sharded_cluster_crud directory.

3. Inside instances.enabled/sharded_cluster_crud, create the following files:

   • instances.yml specifies instances to run in the current environment.
   • config.yaml specifies the cluster configuration.
   • storage.lua contains code specific for storages.
   • router.lua contains code specific for a router.
   • sharded_cluster_crud-scm-1.rockspec specifies external dependencies required by the application.

   The next vshard-quick-start-developing-app section shows how to configure the cluster and write code for routing read and write requests to different storages.

Open the instances.yml file and add the following content:


storage-a-001:storage-a-002:storage-b-001:storage-b-002:router-a-001:

This file specifies instances to run in the current environment.

This section describes how to configure the cluster in the config.yaml file.

Add the credentials configuration section:


credentials:  users:    replicator:      password: 'topsecret'      roles: [ replication ]    storage:      password: 'secret'      roles: [ sharding ]

In this section, two users with the specified passwords are created:

• The replicator user with the replication role.
• The storage user with the sharding role.

These users are intended to maintain replication and sharding in the cluster.

Add the iproto.advertise section:


iproto:  advertise:    peer:      login: replicator    sharding:      login: storage

In this section, the following options are configured:

• iproto.advertise.peer specifies how to advertise the current instance to other cluster members. In particular, this option informs other replica set members that the replicator user should be used to connect to the current instance.
• iproto.advertise.sharding specifies how to advertise the current instance to a router and rebalancer.

The cluster topology defined in the following section also specifies the iproto.advertise.client option for each instance. This option accepts a URI used to advertise the instance to clients. For example, Tarantool Cluster Manager uses these URIs to connect to cluster instances.

Specify the total number of buckets in a sharded cluster using the sharding.bucket_count option:


sharding:  bucket_count: 1000

Define the cluster topology inside the groups section. The cluster includes two groups:

• storages includes two replica sets. Each replica set contains two instances.
• routers includes one router instance.

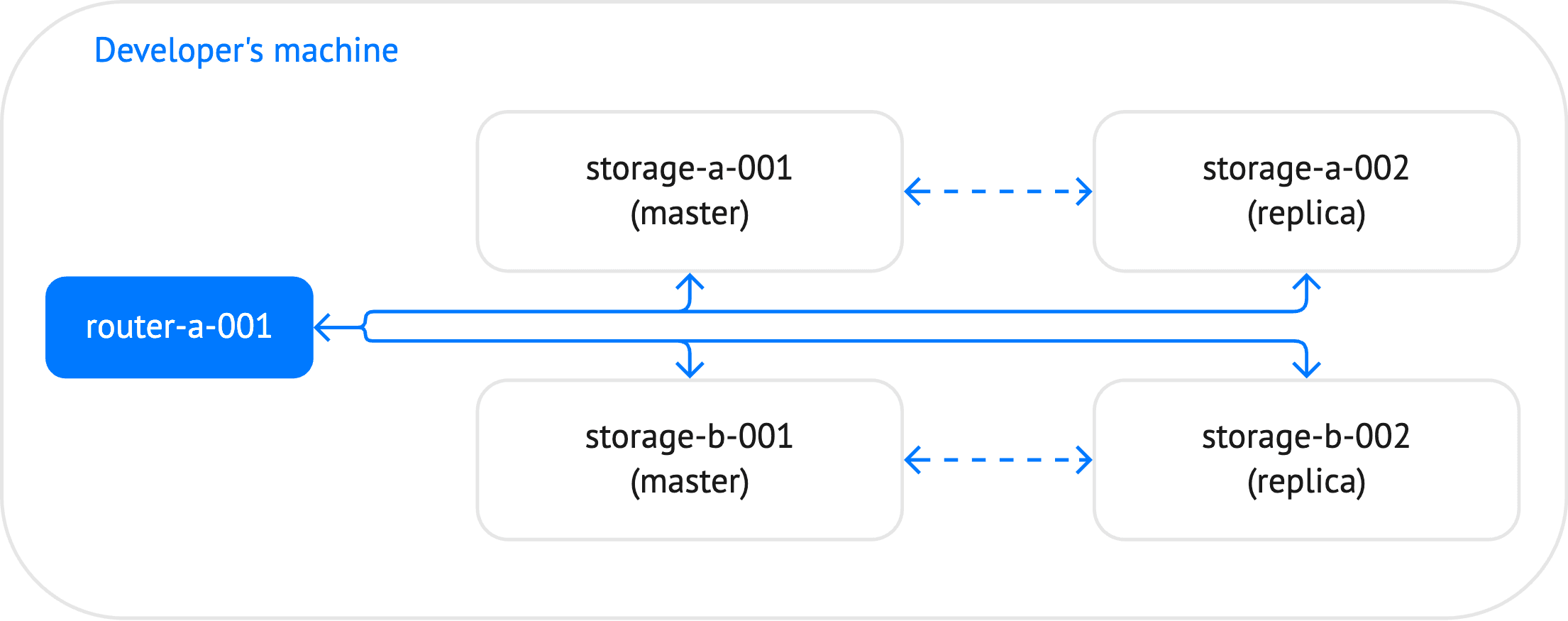

Here is a schematic view of the cluster topology:


groups:  storages:    replicasets:      storage-a:        # ...      storage-b:        # ...  routers:    replicasets:      router-a:        # ...

1. To configure storages, add the following code inside the groups section:


storages:  roles: [ roles.crud-storage ]  app:    module: storage  sharding:    roles: [ storage ]  replication:    failover: manual  replicasets:    storage-a:      leader: storage-a-001      instances:        storage-a-001:          iproto:            listen:            - uri: '127.0.0.1:3302'            advertise:              client: '127.0.0.1:3302'        storage-a-002:          iproto:            listen:            - uri: '127.0.0.1:3303'            advertise:              client: '127.0.0.1:3303'    storage-b:      leader: storage-b-001      instances:        storage-b-001:          iproto:            listen:            - uri: '127.0.0.1:3304'            advertise:              client: '127.0.0.1:3304'        storage-b-002:          iproto:            listen:            - uri: '127.0.0.1:3305'            advertise:              client: '127.0.0.1:3305'


The main group-level options here are:- `roles`: This option enables the `roles.crud-storage`  [role](../../platform/configuration#configuration_application_roles_enable) provided by the  CRUD module for all storage instances.- `app`: The `app.module` option specifies that code specific to  storages should be loaded from the `storage` module. This is  explained below in the  [vshard-quick-start-storage-code](#vshard-quick-start-storage-code)  section.- `sharding`: The  [sharding.roles](../../reference/configuration/configuration_reference#configuration_reference_sharding_roles) option  specifies that all instances inside this group act as storages. A  rebalancer is selected automatically from two master instances.- `replication`: The  [replication.failover](../../reference/configuration/configuration_reference#configuration_reference_replication_failover)  option specifies that a leader in each replica set should be  specified manually.- `replicasets`: This section configures two replica sets that  constitute cluster storages.

2. To configure a router, add the following code inside the groups section:


routers:  roles: [ roles.crud-router ]  app:    module: router  sharding:    roles: [ router ]  replicasets:    router-a:      instances:        router-a-001:          iproto:            listen:            - uri: '127.0.0.1:3301'            advertise:              client: '127.0.0.1:3301'


The main group-level options here are:- `roles`: This option enables the `roles.crud-router`  [role](../../platform/configuration#configuration_application_roles_enable) provided by the  CRUD module for a router instance.- `app`: The `app.module` option specifies that code specific to a  router should be loaded from the `router` module. This is  explained below in the  [vshard-quick-start-router-code](#vshard-quick-start-router-code)  section.- `sharding`: The  [sharding.roles](../../reference/configuration/configuration_reference#configuration_reference_sharding_roles) option  specifies that an instance inside this group acts as a router.- `replicasets`: This section configures a replica set with one  router instance.

The resulting config.yaml file should look as follows:


credentials:  users:    replicator:      password: 'topsecret'      roles: [ replication ]    storage:      password: 'secret'      roles: [ sharding ]


iproto:  advertise:    peer:      login: replicator    sharding:      login: storage


sharding:  bucket_count: 1000


storages:  roles: [ roles.crud-storage ]  app:    module: storage  sharding:    roles: [ storage ]  replication:    failover: manual  replicasets:    storage-a:      leader: storage-a-001      instances:        storage-a-001:          iproto:            listen:            - uri: '127.0.0.1:3302'            advertise:              client: '127.0.0.1:3302'        storage-a-002:          iproto:            listen:            - uri: '127.0.0.1:3303'            advertise:              client: '127.0.0.1:3303'    storage-b:      leader: storage-b-001      instances:        storage-b-001:          iproto:            listen:            - uri: '127.0.0.1:3304'            advertise:              client: '127.0.0.1:3304'        storage-b-002:          iproto:            listen:            - uri: '127.0.0.1:3305'            advertise:              client: '127.0.0.1:3305'


routers:  roles: [ roles.crud-router ]  app:    module: router  sharding:    roles: [ router ]  replicasets:    router-a:      instances:        router-a-001:          iproto:            listen:            - uri: '127.0.0.1:3301'            advertise:              client: '127.0.0.1:3301'


roles: [ roles.crud-router ]app:  module: routersharding:  roles: [ router ]replicasets:  router-a:    instances:      router-a-001:        iproto:          listen:          - uri: '127.0.0.1:3301'          advertise:            client: '127.0.0.1:3301'


roles: [ roles.crud-storage ]  app:    module: storage  sharding:    roles: [ storage ]  replication:    failover: manual  replicasets:    storage-a:      leader: storage-a-001      instances:        storage-a-001:          iproto:            listen:            - uri: '127.0.0.1:3302'            advertise:              client: '127.0.0.1:3302'        storage-a-002:          iproto:            listen:            - uri: '127.0.0.1:3303'            advertise:              client: '127.0.0.1:3303'    storage-b:      leader: storage-b-001      instances:        storage-b-001:          iproto:            listen:            - uri: '127.0.0.1:3304'            advertise:              client: '127.0.0.1:3304'        storage-b-002:          iproto:            listen:            - uri: '127.0.0.1:3305'            advertise:              client: '127.0.0.1:3305'routers:  roles: [ roles.crud-router ]  app:    module: router  sharding:    roles: [ router ]  replicasets:    router-a:      instances:        router-a-001:          iproto:            listen:            - uri: '127.0.0.1:3301'            advertise:              client: '127.0.0.1:3301'

Open the storage.lua file and define a space and indexes inside box.watch() as follows:


box.watch('box.status', function()    if box.info.ro then        return    end    box.schema.create_space('bands', {        format = {            { name = 'id', type = 'unsigned' },            { name = 'bucket_id', type = 'unsigned' },            { name = 'band_name', type = 'string' },            { name = 'year', type = 'unsigned' }        },        if_not_exists = true    })    box.space.bands:create_index('id', { parts = { 'id' }, if_not_exists = true })    box.space.bands:create_index('bucket_id', { parts = { 'bucket_id' }, unique = false, if_not_exists = true })end)

• The box.schema.create_space() function creates a space. Note that the created bands space includes the bucket_id field. This field represents a sharding key used to partition a dataset across different storage instances.
• space_object:create_index() creates two indexes based on the id and bucket_id fields.

Open the router.lua file and load the vshard module as follows:


local vshard = require('vshard')

Open the sharded_cluster_crud-scm-1.rockspec file and add the following content:


package = 'sharded_cluster_crud'version = 'scm-1'source  = {    url = '/dev/null',}dependencies = {    'vshard == 0.1.27',    'crud == 1.5.2'}build = {    type = 'none';}

The dependencies section includes the specified versions of the vshard and crud modules. To install dependencies, you need to build the application.

In the terminal, open the tt environment directory. Then, execute the tt build command:


$ tt build sharded_cluster_crud   • Running rocks makeNo existing manifest. Attempting to rebuild...   • Application was successfully built

This installs the vshard and crud modules defined in the *.rockspec file to the .rocks directory.

To start all instances in the cluster, execute the tt start command:


$ tt start sharded_cluster_crud   • Starting an instance [sharded_cluster_crud:storage-a-001]...   • Starting an instance [sharded_cluster_crud:storage-a-002]...   • Starting an instance [sharded_cluster_crud:storage-b-001]...   • Starting an instance [sharded_cluster_crud:storage-b-002]...   • Starting an instance [sharded_cluster_crud:router-a-001]...

After starting instances, you need to bootstrap the cluster as follows:

1. Connect to the router instance using tt connect:


   $ tt connect sharded_cluster_crud:router-a-001   • Connecting to the instance...   • Connected to sharded_cluster_crud:router-a-001

2. Call vshard.router.bootstrap() to perform the initial cluster bootstrap and distribute all buckets across the replica sets:


   sharded_cluster_crud:router-a-001> vshard.router.bootstrap()---- true...

To check the cluster status, execute vshard.router.info() on the router:


sharded_cluster_crud::router-a-001> vshard.router.info()---- replicasets:    storage-b:      replica:        network_timeout: 0.5        status: available        uri: storage@127.0.0.1:3305        name: storage-b-002      bucket:        available_rw: 500      master:        network_timeout: 0.5        status: available        uri: storage@127.0.0.1:3304        name: storage-b-001      name: storage-b    storage-a:      replica:        network_timeout: 0.5        status: available        uri: storage@127.0.0.1:3303        name: storage-a-002      bucket:        available_rw: 500      master:        network_timeout: 0.5        status: available        uri: storage@127.0.0.1:3302        name: storage-a-001      name: storage-a  bucket:    unreachable: 0    available_ro: 0    unknown: 0    available_rw: 1000  status: 0  alerts: ...

The output includes the following sections:

• replicasets: contains information about storages and their availability.
• bucket: displays the total number of read-write and read-only buckets that are currently available for this router.
• status: the number from 0 to 3 that indicates whether there are any issues with the cluster. 0 means that there are no issues.
• alerts: might describe the exact issues related to bootstrapping a cluster, for example, connection issues, failover events, or unidentified buckets.

1. To insert sample data, call crud.insert_many() on the router:


   crud.insert_many('bands', {    { 1, box.NULL, 'Roxette', 1986 },    { 2, box.NULL, 'Scorpions', 1965 },    { 3, box.NULL, 'Ace of Base', 1987 },    { 4, box.NULL, 'The Beatles', 1960 },    { 5, box.NULL, 'Pink Floyd', 1965 },    { 6, box.NULL, 'The Rolling Stones', 1962 },    { 7, box.NULL, 'The Doors', 1965 },    { 8, box.NULL, 'Nirvana', 1987 },    { 9, box.NULL, 'Led Zeppelin', 1968 },    { 10, box.NULL, 'Queen', 1970 }})

   Calling this function distributes data evenly across the cluster nodes.

2. To get a tuple by the specified ID, call the crud.get() function:


   sharded_cluster_crud:router-a-001> crud.get('bands', 4)---- rows:  - [4, 161, 'The Beatles', 1960]  metadata: [{'name': 'id', 'type': 'unsigned'}, {'name': 'bucket_id', 'type': 'unsigned'},    {'name': 'band_name', 'type': 'string'}, {'name': 'year', 'type': 'unsigned'}]- null...

3. To insert a new tuple, call crud.insert():


   sharded_cluster_crud:router-a-001> crud.insert('bands', {11, box.NULL, 'The Who', 1962})---- rows:  - [11, 652, 'The Who', 1962]  metadata: [{'name': 'id', 'type': 'unsigned'}, {'name': 'bucket_id', 'type': 'unsigned'},    {'name': 'band_name', 'type': 'string'}, {'name': 'year', 'type': 'unsigned'}]- null...

To check how data is distributed across the replica sets, follow the steps below:

1. Connect to any storage in the storage-a replica set:


   $ tt connect sharded_cluster_crud:storage-a-001   • Connecting to the instance...   • Connected to sharded_cluster_crud:storage-a-001

   Then, select all tuples in the bands space:


   sharded_cluster_crud:storage-a-001> box.space.bands:select()---- - [1, 477, 'Roxette', 1986]  - [2, 401, 'Scorpions', 1965]  - [4, 161, 'The Beatles', 1960]  - [5, 172, 'Pink Floyd', 1965]  - [6, 64, 'The Rolling Stones', 1962]  - [8, 185, 'Nirvana', 1987]...

2. Connect to any storage in the storage-b replica set:


   $ tt connect sharded_cluster_crud:storage-b-001   • Connecting to the instance...   • Connected to sharded_cluster_crud:storage-b-001

   Select all tuples in the bands space to make sure it contains another subset of data:


   sharded_cluster_crud:storage-b-001> box.space.bands:select()---- - [3, 804, 'Ace of Base', 1987]  - [7, 693, 'The Doors', 1965]  - [9, 644, 'Led Zeppelin', 1968]  - [10, 569, 'Queen', 1970]  - [11, 652, 'The Who', 1962]...
